Technical parameter
| Machine size(mm) | Performance Parameters | |||
| A Total length | 10960 | Working weight kg | 33500 | |
| B Total width | 3190 | Bucket capacity m³ | 2 | |
| C Total height | 3790 | Breaker rod diameter mm | / | |
| D Track gauge | 2590 | Rated power kW/rpm | 210/1900 | |
| E Track wheelbase | 3930 | Travel speed (high/low) km/h | 5.6/3.6 | |
| F Track length | 4840 | Slewing speed rpm | 10.5 | |
| Scope of work(mm) | ||||
| O Maximum digging distance | 10625 | |||
| P Maximum digging depth | 6940 | |||
| Q Maximum digging height | 9740 | |||
| R Maximum digging distance from the ground | 10430 | |||
| S Maximum unloading height | 6600 | |||
Products Description

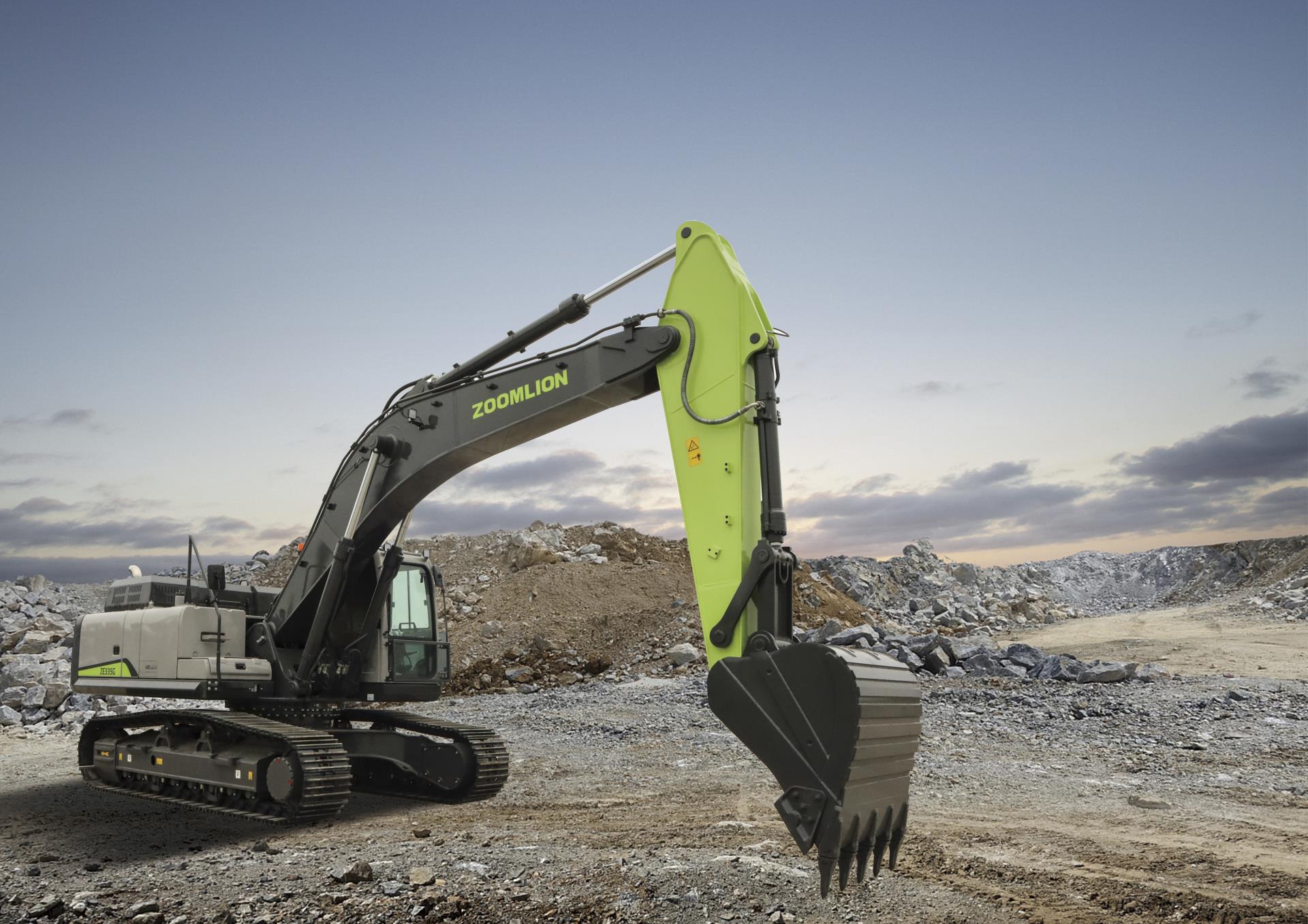

Second hand Zoomlion 33Ton Crawler Hydraulic Excavator
ZE335G is a new G-series 33-ton excavator carefully built by Zoomlion for large earthwork projects. The vehicle adopts a customized power chain of National IV standard, without the need to add urea solution, and is equipped with a new positive flow control system and "E-COT" engine-pump-valve integrated working condition self-optimization control technology, which greatly improves operating income.
High power
Isuzu 6HK1 engine
The 6-cylinder Isuzu 6HK1 engine meets the National IV emission standards, has strong power, sufficient torque reserve, stable output, and saves fuel, with excellent power curve and fuel consumption curve.
13% increase in displacement
Equipped with a new 180cc positive flow main pump and 28mm diameter main valve, the main pump has a larger displacement and the main valve has a smaller pressure loss. The product has outstanding coordination and flat ground operation performance, and the energy utilization efficiency is greatly improved.
E-COT control system
Zoomlion's independently developed "E-COT" engine-pump-valve integrated working condition self-optimization control realizes reasonable matching of power system, hydraulic system and actuator through torque matching and flow matching, outputs optimal power according to load requirements, combines slave pump control and ultra-low idle technology, and improves fuel efficiency by more than 15% compared with the previous generation of products.
Large machine body
New large-scale body shape
Zoomlion's new G series platform and exterior design, the vehicle body specifications are the same as the 37-ton class
greatly increasing the vehicle's internal space and customer satisfaction. The fuel tank capacity is increased to 650L, and the operating range is greatly improved.
Excellent capability
C-type earthwork bucket:
Standard 2.0 cubic bucket capacity, bucket capacity increased by 18%, loading efficiency increased by more than 15%, high operating efficiency; not easy to stick to the bucket, higher loading efficiency; professional reinforced design, more durable.
D-type rock bucket:
Optional 1.6 cubic meter high-strength wear-resistant rock bucket reduces the cutting resistance of bucket teeth and makes the operation faster and more stable.
Intelligent Manufacturing
The world's leading full-process intelligent manufacturing factory
From a steel plate to an excavator, the Earthmoving Machinery Park of Zoomlion Smart Industrial City has an industry-leading intelligent and flexible full-process intelligent manufacturing excavator factory. With high-precision welding technology, highly reliable equipment technology, car-level painting technology and strict quality control, every excavator delivered has the ultimate quality and is consistent.
High Return on Investment
Increase the maximum mining efficiency by 15%
