Technical parameter
| Machine size(mm) | Performance Parameters | |||
| A Total length | 9670 | Working mass kg | 21500 | |
| B Total width | 2800 | Bucket capacity m³ | 1.0 | |
| C Total height | 3120 | Rated power kW/rpm | 129/2200 | |
| D Track gauge | 2200 | Travel speed (high/low) km/h | 4.8/3.0 | |
| E Track wheelbase | 3380 | Slewing speed rpm | 10.5 | |
| Scope of work(mm) | Oil capacity(L) | |||
| O Maximum digging height | 9700 | Fuel tank capacity | 360.0 | |
| P Maximum digging depth | 6460 | Urea capacity | 50.0 | |
| Q Maximum digging distance | 9650 | |||
| R Tail turning radius | 2935 | |||
| S Front minimum turning radius | 3200 | |||
Products Description

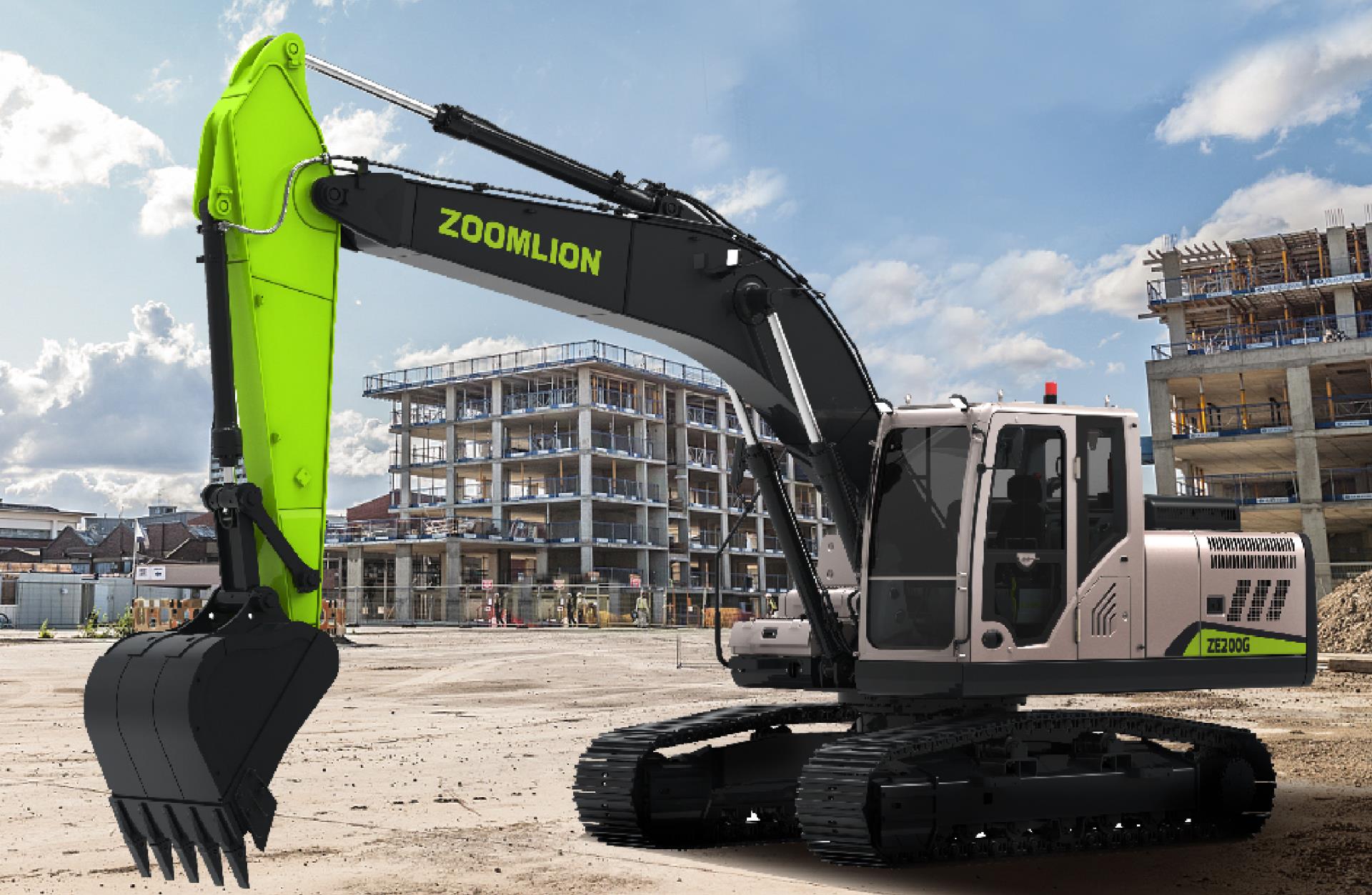

Second Hand 21T Zoomlion ZE200G Crawler Hydraulic Excavator
ZE200G is a 21-ton excavator newly built by Zoomlion for infrastructure (railway, highway, airport, factory, housing, agricultural, water conservancy, etc.) shift operations. The whole machine adopts the brand-new G series appearance, customized National IV power system, and mature load adaptive control system, with obvious advantages in operating fuel consumption.
High power
Customized engine
The new customized high-power engine has sufficient torque reserve, full fuel combustion and low fuel consumption. It adopts Bosch electronic fuel control system to further reduce fuel consumption.
Main pump
Equipped with a new large-displacement main pump with fast speed response.
Main control valve
The large-diameter main valve is carefully adjusted, and the maximum working pressure can reach 37Mpa, which is more powerful; the valve core structure is optimized, and the pressure loss is reduced by more than 20%, which greatly reduces energy loss.
ELAC electronic control system
Through load control technology, PID control, load mutation technology, heavy-load power enhancement technology, etc., it reduces product fuel consumption, improves operational coordination, and has higher operating efficiency. Fuel consumption in common gears is reduced by 6.8%
Large-capacity multi-stage filtration system
The two-stage large-capacity filtration system is adopted, and the filtration accuracy of the filter element is further improved, and the impurity filtration reaches 99.9%. In addition, a fuel cooler is used on the 21-ton model to accurately control the fuel temperature, so that the engine is always in the best condition, which increases the engine life and reduces fuel consumption.
High-efficiency cooling system
The oil radiator, water radiator and intercooler radiator adopt a parallel structure, and the engine and hydraulic system are cooled independently, which has higher cooling efficiency; the new noise-reducing fan is adopted, which improves the cooling capacity by 15% and reduces the noise.
Large machine body
New large-scale body shape
The new G series 21-ton platform is developed, and adopts the new G series family appearance design. The appearance is more majestic and the operation is more stable; the internal cab space of the vehicle is increased, and the sealing and air conditioning are fully upgraded, which greatly improves the driving comfort experience; the fuel tank capacity is further increased to improve the product's operating endurance.
Cab
Adopts special-shaped tube cross-section frame, improved sealing structure design, high-power air conditioning, and new optimized air outlet layout. Safety, comfort and reliability are greatly improved.
Excellent capability
C-type earthmoving bucket (standard configuration)
The professionally designed C-type earthmoving bucket has three major advantages: standard 0.6 cubic meter bucket capacity, high operating efficiency; not easy to stick to the bucket, higher loading efficiency; professional reinforced design, more durable.
D-type rock bucket (optional)
The D-type rock bucket designed based on bionics has three major advantages: optional 0.85 cubic bucket capacity, which greatly reduces the cutting resistance of bucket teeth and makes excavation more powerful; reduces the wear and impact of rocks on the bucket bottom, making the bucket more durable; reduces the impact of rocks on the bucket bottom, improves the stability of the whole machine and makes operation more comfortable.
2D/3D auxiliary construction guidance system (optional)
In construction with high precision requirements or invisible excavation such as slope trimming, trench excavation, river channel excavation, and riverbed leveling, the 2D/3D construction guidance system is used to complete the construction work according to the guidance prompts, which improves the efficiency by 40% compared with traditional construction.
Intelligent Manufacturing
The world's leading full-process intelligent manufacturing factory From a piece of steel plate to an excavator, the Earthmoving Machinery Park of Zoomlion Smart Industrial City has an industry-leading intelligent and flexible full-process intelligent manufacturing excavator factory. With high-precision welding technology, highly reliable equipment technology, car-level painting technology and strict quality control, every excavator delivered has the ultimate quality and is consistent.
