Technical parameter
| Item | Unit | Value | |
| Product model | / | ZLJ5312GJBHN7F | |
| Curb weight | kg | 13850 | |
| Length x width x height | mm | 10215x2530x3960 | |
| Engine | / | MC07H.35-60 | WP8.350E61 |
| Emission standard | / | National VI | |
| Rated power | kW/r/min | 257/2200 | 257/2100 |
| Maximum torque | N.m/r/min | 1412/1200-1600 | 1400/1200-1600 |
| Gearbox | / | HW10 | HW10 |
| Drive axle | / | MAT16ZG double-stage reduction bridge | |
| Stirring capacity | m3 | 7.8 | |
| Hydraulic system/reducer | / | International famous brand | |
| Water tank | L | 450 | |
1. The product images, product technical parameters and configurations on the above pages are for illustration only. The actual product effects (including but not limited to appearance, color and size) and product technical parameters and configurations may be slightly different. Please refer to the actual product; in addition, the machine in the picture may include additional equipment. 2. The data on the above pages are theoretical values, all from Zoomlion’s internal laboratory, obtained under a specific test environment. The actual use may be slightly different due to individual differences in products, use conditions and environmental factors. Please refer to the actual use. 3. In order to provide the most accurate product information, specifications and product characteristics, Zoomlion may adjust and correct the text descriptions, picture effects and other contents on the above pages in real time to match the actual product performance, specifications, indexes, parts and other information. 4. Due to real-time changes in product batches and production supply factors, if there is a need for the above modifications and adjustments, we will not specifically notify you. Please refer to the real-time information on the official website.
Products Description

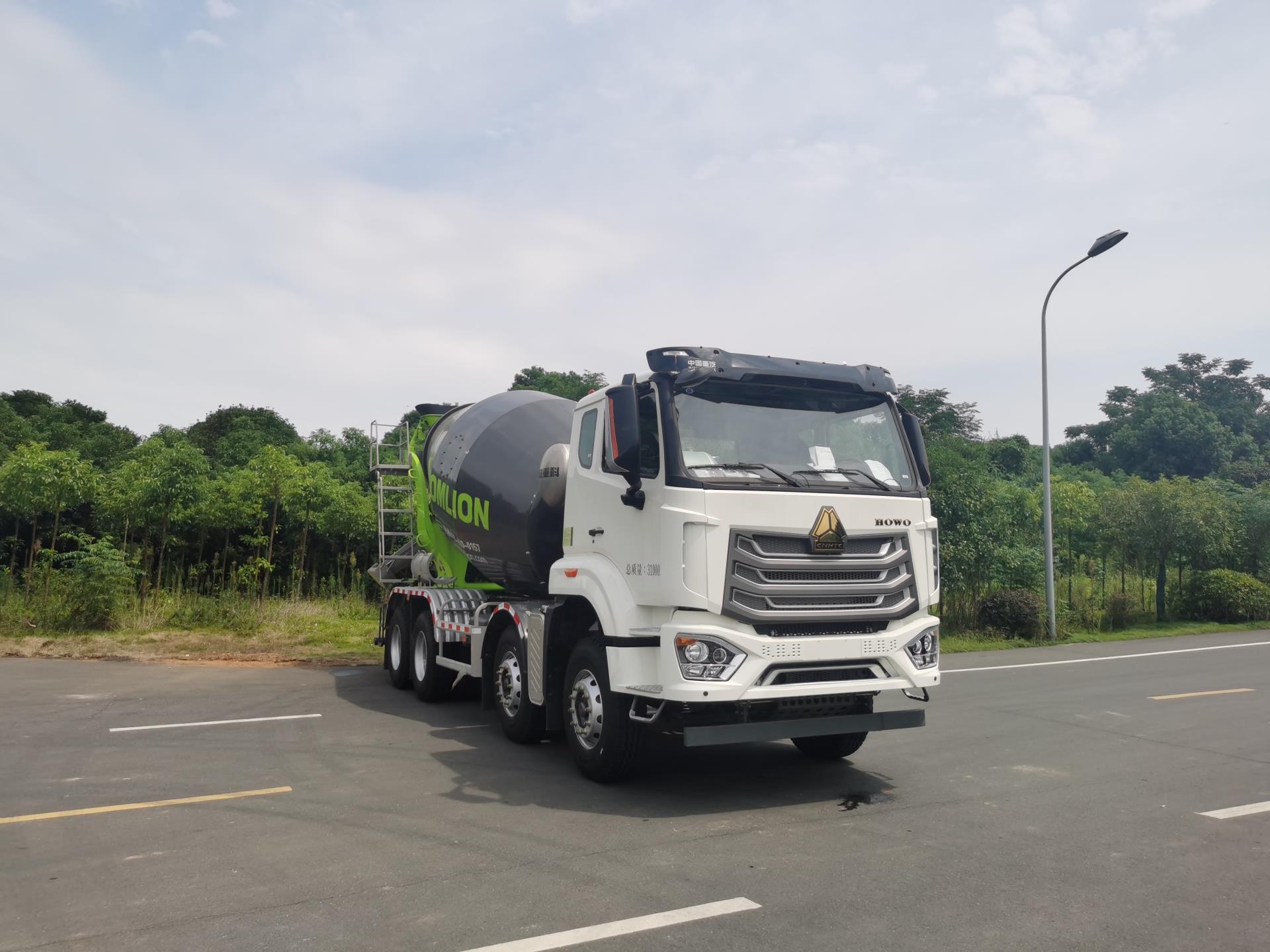

Second hand zoomlion Four-axle 12F Sinotruk HOWO mixer truck ZLJ5312GJBHN7F
High cost performance
1.Safe and comfortable cab (H77L): airbag shock-absorbing main seat + spacious sleeper + multi-function steering wheel + central door lock + smart pass B version + four-way imaging, high cost performance configuration, comfortable experience
2.MAN Technology MC07H.35-60 high-performance engine + MAT16ZG drive axle + gearbox HW10, a powerful combination provides high-performance power
Surround view monitoring
Front-mounted four-way imaging system, 360-degree monitoring eliminates visual blind spots
Low inclination angle
The inclination angle of the mixing drum is 0.5°~1° lower than that of the same model of the competitor. The center of gravity is reduced by 50~100mm.The probability of tipping is reduced by 70%
High reliability
1.The mixing drum adopts discrete element technology analysis + double helix fourth-generation T-shaped blades to effectively solve the segregation problem of machine-made sand concrete, and the residual rate of discharge is as low as less than 0.5%; the blades are more wear-resistant and the service life can be guaranteed for 6 years without worry
2.The plate material abrasive feed hopper is enlarged, and the "material abrasive" technology is adopted. The service life can reach 30,000 cubic meters, and the volume is increased by 33.6%, which is suitable for large-volume host material discharge.
3.The main tank is lengthened by 200mm, and the material distribution range is increased by 22.23%. The rear guard is prevented from colliding with the pump truck, and the material distribution range is wider.
