Technical parameter
| Item | Unit | Value |
| Maximum rated total lifting weight | kg | 70000 |
| Maximum lifting moment of basic arm | kN.m | 2744 |
| Maximum lifting moment of fully extended arm | kN.m | 1364 |
| Fully extended arm | m | 55.0 |
| Fully extended arm + longest auxiliary arm | m | 71.0 |
| Maximum speed of single rope (main/auxiliary lifting mechanism) | m/min | 125/110 |
| Maximum driving speed | km/h | 85 |
| Weight in driving state | kg | 46000 |
| Dimensions (length x width x height) | mm | 14250x2830x3900 |
| Outrigger span (vertical x horizontal) | M | 6.05 x 7.8 |
| Rated power/speed | kW/r/min | 276/1900 |
| Maximum torque/speed | N.m/r/min | 1650/1100-1500 |
Products Description

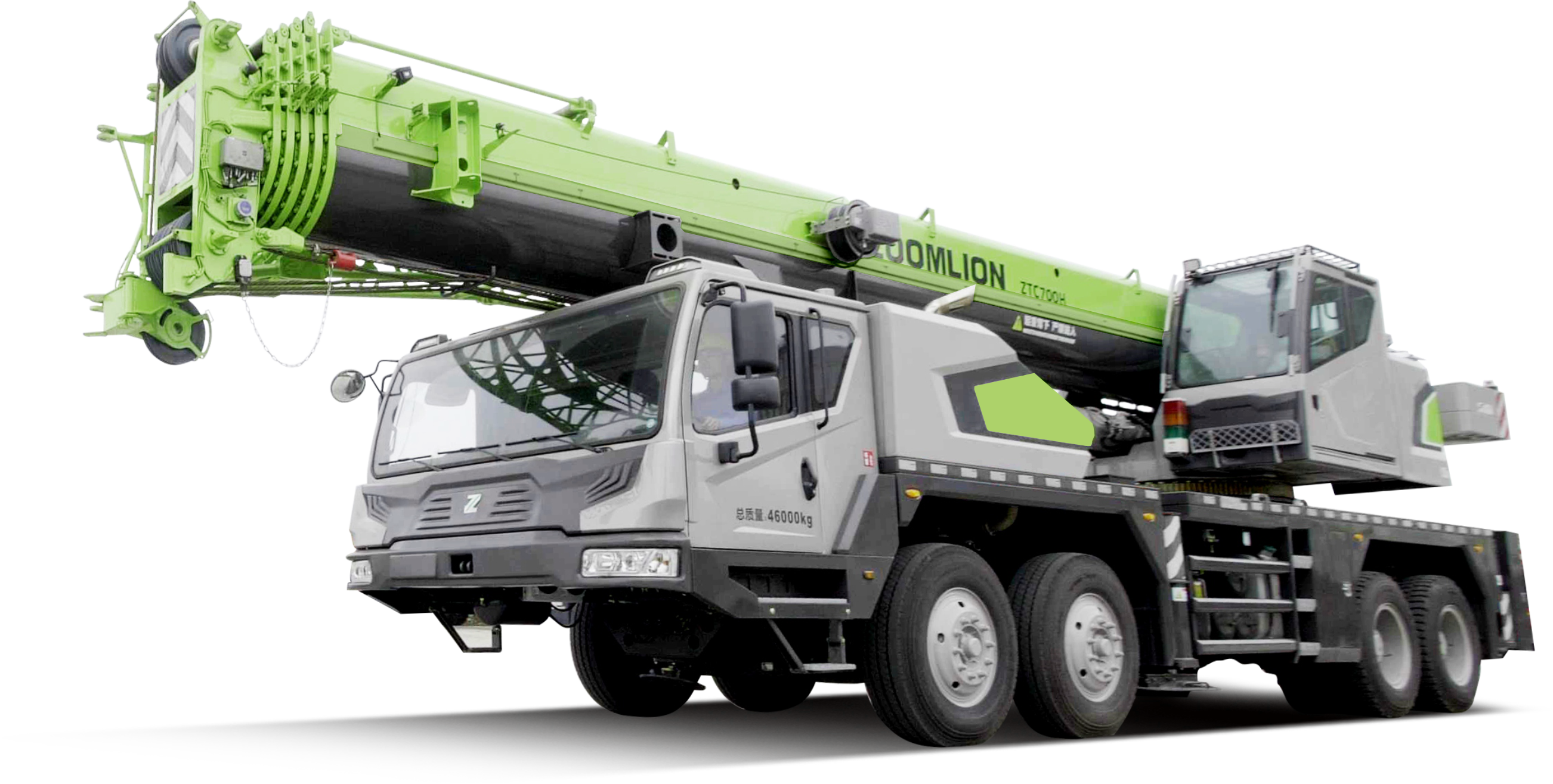

Second hand zoomlion ZTC700H6 Truck Crane
The industry's first 70-ton 6-section arm product, 80-ton performance & smart lifting. Full extension lifting capacity 8.5 tons, approaching industry 80-ton comprehensive lifting performance.
Strong performance The industry's longest 6-section 55m "U"-shaped main arm, the comprehensive lifting performance leads the industry's same tonnage level by more than 10%, and the operating conditions cover the industry's 80-ton products.
1.It can carry the auxiliary arm and 3m heavy-duty goose head frame with the vehicle for normal driving at the same time, which is convenient and fast to use, and has more operating conditions.
2.The industry's 46-ton self-weight platform can carry 10 tons of counterweight when transferring; it has strong power and a maximum speed of 85km/h.
Accurate and stable
The operation action is customized with a professional slow gear function, the lowest stable speed of slewing is 0.1°/s, and the lowest stable speed of lifting is 2.5m/min, which meets the requirements of precise lifting operations.
Energy saving and environmental protection
Intelligent multi-power mode energy-saving system, the average fuel consumption of the operation is 4.5L/h, and the comprehensive fuel saving is 20%.
Intelligent Internet of Things & Intelligent Lifting
Move the vehicle information to the remote, and realize all-round information management through the mobile phone app.
1. The self-planning technology of working conditions automatically recommends the best working conditions and simplifies the query and setting process of working conditions.
2.The lifting luffing compensation control technology automatically compensates for the amplitude change caused by the deformation of the boom when raising and lowering the hook by controlling the luffing angle of the crane.
3.The winch follow-up control technology controls the winch autonomously by the control system during extension and luffing, saving operation time, improving operation convenience, and providing multiple operation modes.
